| · HOME >Product>Corrugated board >Endless felt for Belt Type Single Facer |
|
|
| |

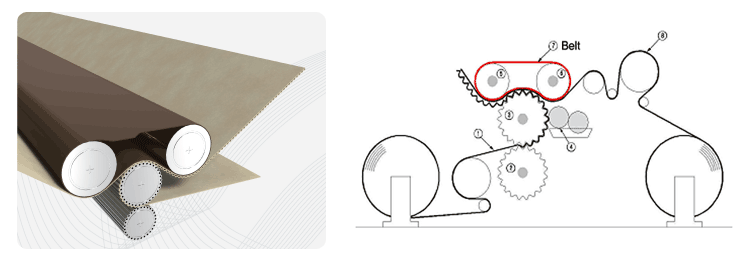

| A single facer is a machine that produces single faced corrugated boards from a corrugating medium and liner web during the first production process of a corrugating machine that produces corrugated borard sheets. |
| |
 |
| |
| Material |
Special fiber+ Teflon |
| Working Temperature |
220℃ |
| Property |
0.1~0.2% Elongation at 150kg/cm |
| Dimension |
· Width : < 3,000mm
· Inner Circumference : 2,650 ~ 5,000mm
· Thickness : 2.5~3.5mm
|
| Advantage |
· No press marks
· High speed and quality
· Cost reduction
· Low noise
|
| Remark |
Optical and Magnetic senor available |
|
|
|
| |
|
