    PRODUCT



    · HOME >Product>Steel>Conbeyor Sleeves

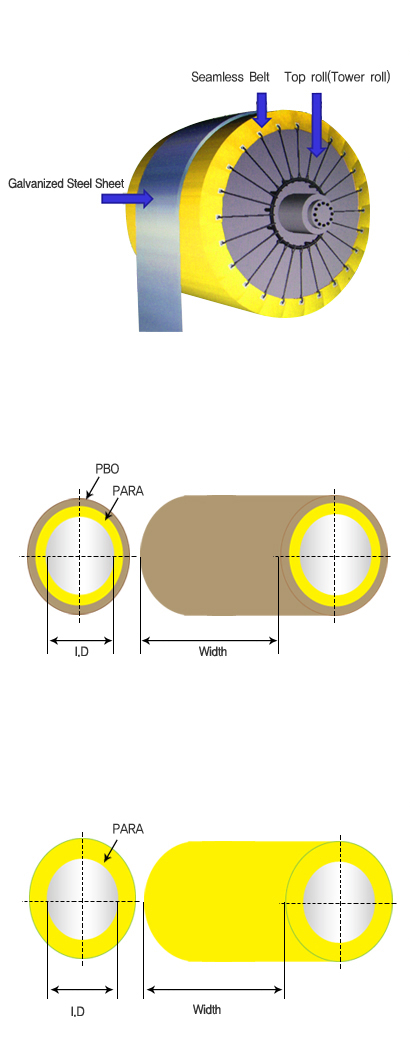

    Sleeve(Covering) for Top-Roller
    Continuous Galvanizing Line
    ITEM NO. BSC-101
    Material Kevlar
    Standard W,2,380 * L,4710 * T 10mm
    Working
    Temperature    		 450℃ (It may vary depending on working condition)
    Dimension

    · Width                      : <3,000mm
    · Inner Circumference : <20,000mm
    · Thickness               : 5~12mm
    Remark

    · Metal eyelets available for   clamping device
    · Difference of Surface-Level   available

    <
    Sleeve for Touch-Roller
    Continuous Galvanizing Line
    ITEM NO. BSC-103
    Material PBO (Surface) + Kevlar
    Dimension · Inner Dia. : min 51mm
    · Length :
      1) up to 1,200mm
         (less than 120mm Dia.(Ø))
      2) up to 3,000mm
         (more than 120mm Dia.(Ø))
    · Thickness : 5~12mm
    Working
    Temperature

    650℃ (It may vary depending on working condition)
    Remark

    Hard type available

    Sleeve for Pass-Roller
    Continuous Galvanizing Line
    ITEM NO. BSC-105
    Material Kevlar
    Dimension · Inner Dia. : min 51mm
    · Length :
      1) up to 1,200mm
         (less than 120mm Dia.(Ø))
      2) up to 3,000mm
         (more than 120mm Dia.(Ø))
    · Thickness : 5~12mm
    Working
    Temperature

    550℃ (It may vary depending on working condition)
    Remark

    Hard type available

    · Customers in Korea : POSCO, POSCO C&C, Dongbu Steel, Hyundai Hysco, etc.
    · Other Country : Taiwan
